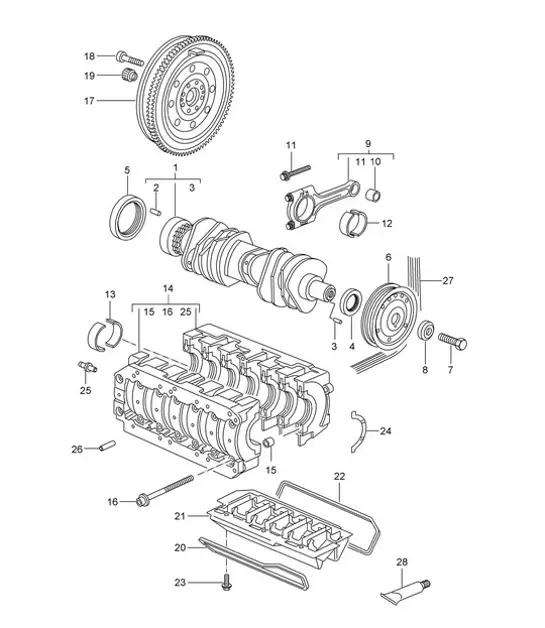

Kurbelwelle - 9720, 9721, 9722 - 987C.1 Cayman 2,7L / 3,4L 2006-08 - PORSCHE
Klicken Sie auf die Bildnummern, um die Produktinformation zu sehen
102-000| Nummer | Teilenr. | Beschr. | Hinweis | Modell |
|---|---|---|---|---|
| 1 | 98710201003 | Kurbelwelle | 9721,9722 | |
| 1 | 99610201158 | Kurbelwelle D - MJ 2007>> | 9720 | |
| 2 | PAF013334 | Federstift 6,0 X 16 | ||
| 3 | 90030202100 | Zylinderstift A 4,0 X 10 | ||
| 4 | 99911347540 | Wellendichtring 40 x 62 x 10 | ||
| 5 | 0PB105249 | Wellendichtring 85 x 105 x 11 | ||
| 6 | 99610211563 | Rolle | ||
| 7 | 90008208501 | Sechskantschraube M 16 X 1,5 X 60 | ||
| 8 | 99610231552 | Hochdruckreiniger | ||
| 9 | 99610397502 | Pleuelstange Pleuel bestehend aus: 6 Pleuelstangen Siehe Werkstatthandbuch 987 GR.1-1 | ||
| 10 | 99610311151 | Buchse - Pleuel | ||
| 11 | 99710311501 | Bolzen - Pleuel | ||
| 12 | 99610312162 | Pleuellagerschale | ||
| 13 | 99610120510 | Kurbelwellenlager D - MJ 2007>> | 9720 | |
| 13 | 99610120904 | Kurbelwellenlager | 9721,9722 | |
| 14 | 99610100723 | Lagergehäuse | 9721 | |
| 14 | 99610100709 | Lagergehäuse D - MJ 2007>> | 9720 | |
| 15 | 99909506400 | Dübelhülse 12 M 6 X 13 | ||
| 16 | 99610111562 | Schraube für Lagergehäuse | ||
| 17 | 98611401206 | Zweimassenschwungrad | 9721,9720+ PR:480 | |
| 17 | 98611401205 | Zweimassenschwungrad D - MJ 2007>> | 9720+ PR:481 | |
| 18 | 99907309202 | Innensechskantschraube M 10 x 1 x 50 | ||
| 19 | 034105313A | Nadellager - | ||
| 20 | 99610124151 | Siegel | ||
| 21 | 99610111000 | Ölabscheider | ||
| 22 | 99610124251 | Siegel | ||
| 23 | 90038505001 | Sechskantschraube M 6 X 16 | ||
| 24 | 99610112952 | Anlaufscheibe | 9720 | |
| 24 | 0PB105638 | Anlaufscheibe | 9721,9722 | |
| 25 | 99610111755 | Zylinderstift | ||
| 26 | 99610101851 | Sprühstrahl | ||
| 27 | 99610215166 | Polyripp-Gürtel | ||
| 28 | 00004330556 | Hochdruckfett Optipit | 100 GR. |
