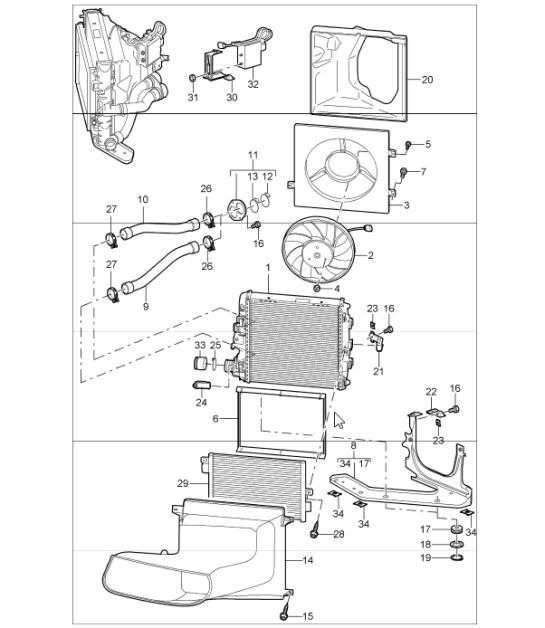

Wasserkühlung - 3 - für 997.1 M96.05 3.6L COUPE / CABRIO und 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08 - PORSCHE
Klicken Sie auf die Bildnummern, um die Produktinformation zu sehen
105-15| Nummer | Teilenr. | Beschr. | Hinweis | Modell |
|---|---|---|---|---|
| 1 | 99710613102 | Kühler | /L | |
| 1 | 99710613202 | Kühler | /R | |
| 2 | 99762412702 | Fan | /L | |
| 2 | 99762412802 | Fan | /R | |
| 3 | 99762413102 | Luft Box | /L | |
| 3 | 99762413202 | Luft Box | /R | |
| 4 | 90037701001 | Sechskantmutter M 6 | ||
| 5 | 90014611609 | Schraube M 5 X 16 | ||
| 6 | 99757371100 | Dichtungsrahmen | ||
| 7 | 99991912509 | Sechskantschraube Kunststoff M 6 x 16 | ||
| 8 | 99710615501 | Halterung | /L | |
| 8 | 99710615601 | Halterung | /R | |
| 9 | 99710662504 | Wasserschlauch-Rücklaufleitung | /L | |
| 9 | 99710662605 | Wasserschlauch-Rücklaufleitung | /R | |
| 10 | 99710662105 | Wasserschlauchversorgung | /L | |
| 10 | 99710662204 | Wasserschlauchversorgung | /R | |
| 11 | 99710625502 | Stutzen | ||
| 12 | 99710680201 | Feder SCB 33 | ||
| 13 | 99710680202 | Feder SCB 36 | ||
| 14 | 99757532102 | Luftkanal | /L | |
| 14 | 99757532202 | Luftkanal | /R | |
| 15 | 99991913409 | Linsenschraube M 6 X 16 | ||
| 16 | 9A700812500 | Torx-Schraube M 6 X 16 | ||
| 17 | 99970349440 | Gummilager 15 X 19,5 | ||
| 18 | PAF008434 | Waschmaschine | ||
| 19 | 99916608309 | Sicherungsblech B 25 | ||
| 20 | 99757534100 | Luftkanal | /L | |
| 20 | 99757534200 | Luftkanal | /R | |
| 21 | 99710623201 | Stütze außen | ||
| 22 | 99710645500 | Unterstützung übrig | ||
| 23 | 99959135001 | Blechmutter ST 4,8 | ||
| 24 | 99710623102 | Unterstützung innen | ||
| 25 | 99710680200 | Feder SCB 26 | ||
| 26 | 99751274201 | Klemme | ||
| 27 | 99710690200 | Klemme | ||
| 28 | 99991912509 | Sechskantschraube 6,0 X 16 | ||
| 29 | 99757391102 | Kondensator | ||
| 30 | 99710645600 | richtig unterstützen | ||
| 31 | 90037701001 | Sechskantmutter M 6 | ||
| 32 | 99761843604 | Steuergerät Kühlluftregelung | ||
| 33 | 99710654602 | Stopper | ||
| 34 | 99959132901 | Blechmutter ST 4,8 |
